Zoom Ratio 1:8.3 Extra wide field eyepiece WF10X / Φ23 Zoom Stereo Microscope NCS-N6800

Product Categories

Nece-Scope Int'l Co., Limited

Contact Now

Model Number : NCS-N6800

Certification : CE/ ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000sets per month

Packaging Details : Carton

Zoom Ratio : 1:8.3

Eyepiece : WF10X/Φ23

Zoom Objective : 0.6X-5X

Model : NCS-N6800

Drawing Tube : Trinocular

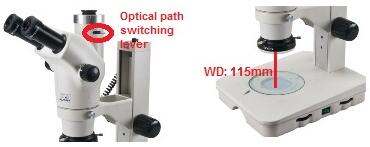

Working Distance : 115 mm

C Mount : 0.55x

Contact Now

Zoom Ratio 1:8.3 Extra wide field eyepiece WF10X / Φ23 Zoom Stereo Microscope NCS-N6800

Description

Specification

		NCS-N6800A	NCS-N6800B
Viewing Tube	Trinocular viewing head, Inclined at 30°	●	●
Diopter Adjustment Eyepiece	Extra wide field eyepiece WF10X/Φ23	●	●
	WF15X/Φ16	○	○
	WF20X/Φ12	○	○
	WF30X/Φ8	○	○
	WF10X Eyepiece with cross hair	○	○
Zoom Objective	0.6X-5X	●	●
Zoom Ratio	1:8.3	●	●
Working Distance	115mm	●	●
Interpupillary Distance	55-75mm	●	●
Auxiliary objective	0.5X WD:220mm	○	○
	0.7X WD:125mm	○	○
	2X WD:45mm	○	○
Stage Insert	Glass plate, Diameter 125mm	●
	Glass plate, Diameter 100mm		●
	Opal & black acrylic plate, Diameter 125mm	●
	Opal & black acrylic plate, Diameter 100mm		●
Focusing Range	105mm	●	●
Illumination	Incident Illumination 100V-240V/LED	●	●
	Transmitted Illumination 100V-240V/LED	●	●
	LED ring illuminator	○	○
	L-150A/LED40A Cold light power	○	○
Video Adapter	0.55x C Mount	●	●
Video Adapter	1x C Mount	○	○
Polarization set		○	○
Dark field attachment		○	○

Note: ●Standard Outfit, ○ Optional

Feature
Zoom Ratio 1:8.3 Extra wide field eyepiece WF10X / Φ23 Zoom Stereo Microscope NCS-N6800

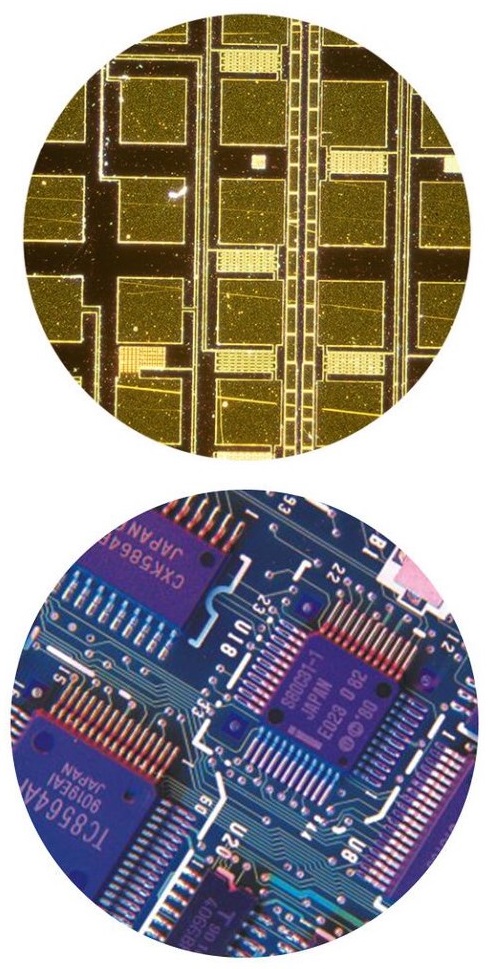

Samples:

Zoom Ratio 1:8.3 Extra wide field eyepiece WF10X / Φ23 Zoom Stereo Microscope NCS-N6800
